Product info

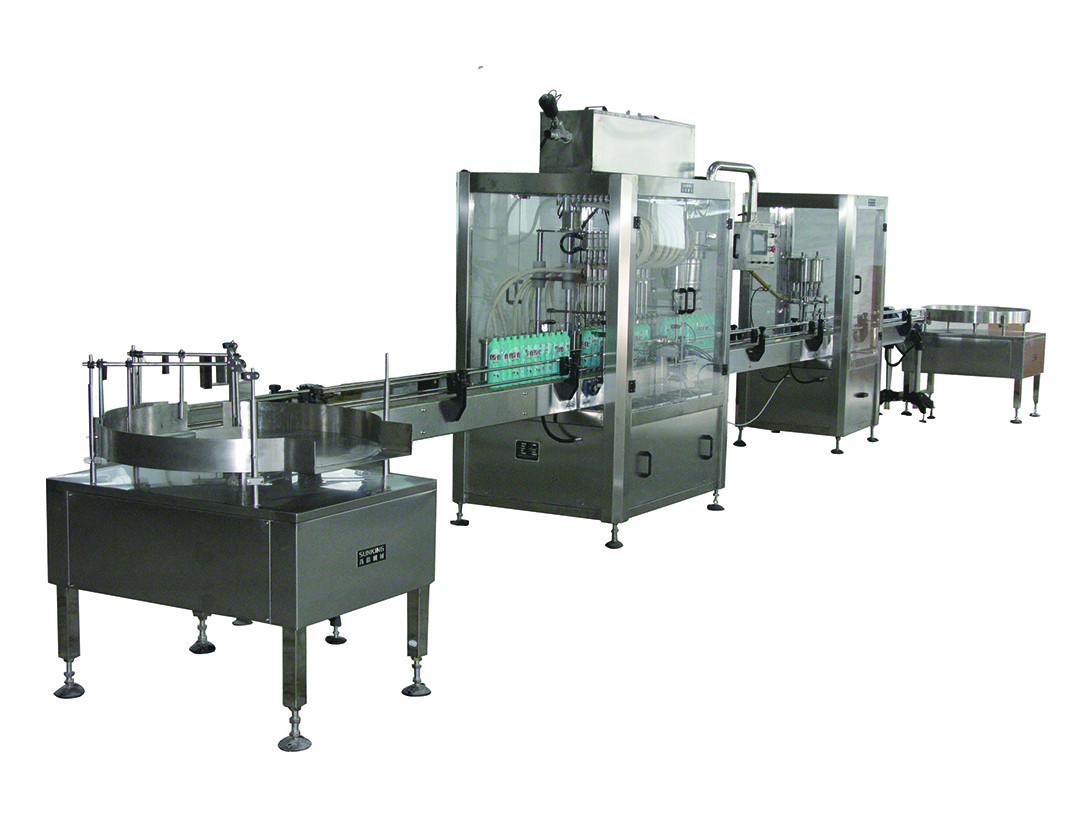

1.SKP automatic Sealing and Capping Line
This machine line is a linear piston filling line.It is useful to fill sticky liquid by using a special pump which is inserted deep inside the bottle and fill the bottle with the liquid soap under pressure.It can also be called a pressure filling machine. The piston driven and the filling nozzles diving into the bottles,these are controlled by the servo motor in order to keep the liquid soap at a suitable level to prevent extra foam emission from the bottles. The linear line is widely applicable to different bottles in food,pharmaceutical and chemical industries.This machine line makes less foams when filling,it is easy to adjust.It can do accurate dosing.When there is no bottles,no filling.
Technical Parameters:
1.Filling nozzles： Customized as required
2.Filling ranges：200-5000ml
3.Filling method: With piston,the nozzle enter deep into the bottle/container of the liquid,it adopts the servo system to drive the pistons and filling nozzles up and down to finish the filling.
4.Control method, PLC touch screen human machine interface.
5..Material, Filling machine line frame is all in stainless steel.Parts in contact with liquid soap is in stainless steel or engineering plastics.
6.Conveying speed, At 5~18m/min,.The height of conveyance belt above the ground is 750~800mm.
7. Machine power：about 2KW.
8. Compressed air：pressure is 0.4-0.6Mpa
9.Dimension:1800×1500×2200mm
10.Weight: 2000Kg
2.SKYG Capping Machine
This machine line adopts a rotating continuous capping device,it automatically unscrambles the caps.It divides the bottles with a special device,with a mechanical hand to hang the bottle neck in order to protect the bottle under strong pressure.
Technical Parameters:
1.Capping head： Customized as required
2.Speed： 100~200 Bottle/min
3.Power： 3KW About3KW
4.Dimension： About 1800*1500*2200
5.Weight：About 1200Kg
SKLT Unscrambling Table
This rotating table is used for unscrambling the empty bottles before filling,it is conveyed onto the conveyance belt.One worker is needed to watch the conveyance of the bottles before filling the liquid soap as the bottles are too light and and easy to fall down.
Technical Parameters:
1.Diameter:1000mm
2.Power：About0.75KW
3.Weight：About 300Kg
SKZT Accumulating Table
This rotating table is used for accumulating the finished products.Workers can pick up the finished bottles and pack the bottles into carton.
Technical Parameters:
1. Diameter:1000mm
2. Power：About 0.75KW
3. Weight：About 300Kg
SKSS automatic Bottle Conveyor
This device is for conveying all kinds of bottles,it adopts frequency motor,the conveying speed can be adjusted.The length of the conveyor can be made according to customers’requirements.
